OPTINIŲ MODŲ KEITIKLIAI

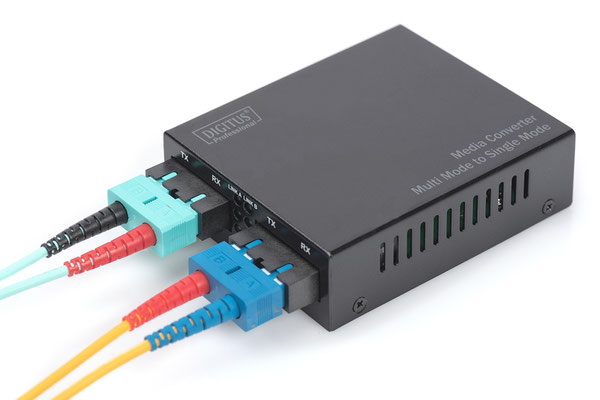

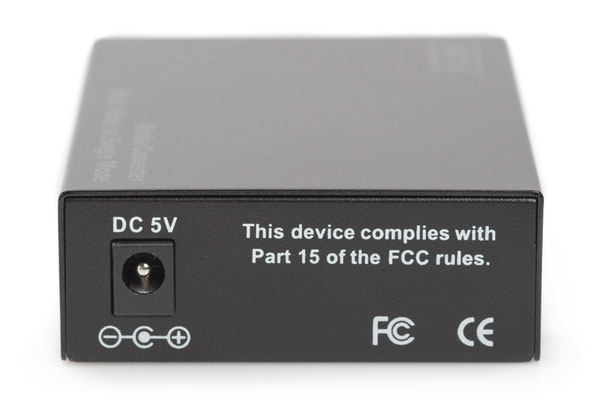

Optinių modų keitiklis AM turi du optinius portus.Jis naudojamas optinio tinklo ,suinstaliuoto daugiamodėmis medžiagomis (MM), sujungimui su optiniu tinklu,suinstaliuotu vienamodėmis medžiagomis (SM).Be to keitiklis dar ir sustiprina signalą.
1.ATOP Technology Co., Ltd
Savybės:
-Perdavimo būdas „duplex“-dviem šviesolaidžio skaidulomis;
-Turi dvi versijas,priklausomai nuo duomenų perdavimo greičio;
-Du optiniai portai:A-Daugamodis,B-Vienamodis;
-Atskiri portai gali dirbti su skirtingo ilgio bangomis,atitinkančias skirtingas optines modas,t.y.keitiklis gali dirbti kaip bangos ilgio perjungėjas.
Priekinėje panelės dalyje kiekvienas portas turi šviesos diodus kiekvieno porto darbo indikacijai.
Techniniai parametrai:
|
Duomenų perdavimo greitis
|
10/100Mb/s
1000Mb/s |
AM100
AM1000 |
|
Perdavimo būdas
|
full / half duplex
|
Atomatinis suderinamumas
|
|
Šviesolaidžio tipas
|
9/125μm
50/125 lub 60.2/125μm |
Vienamodis (SM)
Daugiamodis (MM) |
|
Bangos ilgis
|
1310nm lub 1550nm
850nm lub 1310nm |
Vienamodžio (SM)
Daugiamodžio (MM) |
|
Maksimalus atstumas
|
do 2km
do 100km |
Daugiamodžio
Vienamodžio |
|
Darbo temperatūra
|
0ºC do 70ºC
|
|
|
Drėgmė
|
5% do 90%,
|
|
|
Maitinimas
|
5V DC 1A
|
Keitiklis iš 230V AC
|
|
Gabaritai
|
30x112x141mm
|
Išorinis maitinimo šaltinis
|
|
Jungtis
|
SC duplex
|
port A ir B
|
Galimi modeliai:
|
Modelis
|
Moda
|
Greitis
|
Atstumas
|
Bangos ilgis
|
|
AM100-25
|
MM/SM
|
10/100Mb/s
|
2/25km
|
1310nm
|
|
AM100-40
|
2/40km
|
|||
|
AM100-60
|
2/60km
|
|||
|
AM100-100
|
2/100km
|
|||
|
AM1000-10
|
MM/SM
|
1000Mb/s
|
500m/10km
|
850nm/1310nm
|
|
AM1000-20
|
500m/20km
|
|||
|
AM1000-40
|
500m/40km
|
|||
|
AM1000-100
|
500m/100km
|
850nm/1550nm
|
2.100Base-FX Multi-Mode to Single Mode SC-Type Fiber Converter TFC-15MS100 (Version A1.1R)
Savybės:
-Keitiklis SC-type Multi-mode į single-mode ;
-Veikia kaip atskiras keitiklis;
-Suderinamas su TFC-1600 optinių keitiklių šasi atstumams iki 15km;
-Turi 2 x 100Base-FX (SC-Type) portus.Tinklas 100Base-FX Multi-Mode to 100Base-FX Single Mode media.
| Hardware | |
| Standard | IEEE802.3u 100Base-FX |
| Supported Frame Size | Standard Ethernet up to 1522byte |
| Network Media | 100Base-FX : Multi-mode fiber optic cable 50/125 µm or 62.5/125 µm, up to 2km 100Base-FX : Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 15km |
| Protocol | CSMA/CD |
| Ports |
100Mbps (half-duplex) 200Mbps (full-duplex) |
| Transfer Rate | 100Base-TX : 200Mbps (Full Duplex) |
| Diagnostic LED |
|
| Power Adapter | 7.5V DC, 1A external power adapter |
| Power Consumption | 1.8 Watts (max) |
| Dimensions | 120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.) |
| Weight | 354g (12.5oz) |
| Temperature |
|
| Humidity | Max. 90% (non-condensing) |
| Certification | FCC,CE |
| Model Name | Media | Wavelength | Pout (dBm) | Sensitivity | Power | Distance |
| TFC-15MS100 | MMF | 1300nm | -23.5 ~ -14 | -31 ~ 0 | 7.5 | 2km |
| TFC-15MS100 | SMF | 1310nm | -20 ~ 0 | -32 ~ 0 | 12 | 15km |
3.155M/1.25G/10G SM-MM Fiber Optic Media Converter
MODEL: AOM-X020-F
DESCRIPTION :
* Support 155M,1.25G SFP and 10G SFP+ Transceivers.
* Fulfill the conversion of single mode or multi mode
Overwiew
AOM-SFP-SFP series SFP to SFP converters support 155M,1.25G SFP and 10G SFP+ Transceivers. It can not only fulfill the conversion of single mode or multi mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode or single mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Features:
-Supporting 155M,1.25G SFP and 10G SFP+ Transceivers, Hot-plug;
-Supporting full-duplex and half-duplex and its auto-sensed;
-Supporting direct and transparent transmission of packets at different lengths;
-Supporting the transmission of extra-long VLAN packets;
-Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
-Supporting STP to form a redundant network;
-Low power consumption, low heat, reliable and stable performance, and long lifetime;
-Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber.
Parameter
| Parameter | Specifications |
| Port | SFP Slot |
| LED indicator |
PWR (power supply) P1 (SFP1) P2 (SFP2) |
| Power supply | DC5V 1A |
| Power consumption | 3.5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions |
External: 94mmx71mm*26mm |
Producer:AOA Technology Co. Ltd
