PLASTIKINIO ŠVIESOLAIDŽIO JUNGTYS

Plastic optical fiber (POF) connectors.

Plastikinė šviesolaidinė optika (POF) yra naudojama automobiliuose ir pramoninių staklių valdyme. 1,0mm plastikinė šviesolaidinė optika yra pagaminta iš PMMA (akrilo), bendrosios paskirties dervos ir fluorintų polimerų,kaip apsaugos medžiagų.

1.1.Plastikinio šviesolaidšio jungtys.

1.2.Plastikinis jungiamasis PATCH kabelis  HFBR/HFBR. ZN Kodas 580462

HFBR to HFBR Simplex Plastic Optical Fiber POF Patch Cord

Four connector styles are available for termination of plastic optical fiber: simplex, simplex latching, duplex and duplex latching. All connectors provide a snap-in action when mated to versatile link components. Simplex connectors are color coded to facilitate identification of transmitter and receiver connections. Duplex connectors are keyed so that proper orientation is ensured during insertion. If the POF cable or connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive.

Features:  -HFBR connectors provide excellent retention force combined with easy snap-in action;

  -Plastic fiber cable delivers high bandwidth and a tight bend bend radius when compared to traditional glass fiber;

  -These cables are available in lengths ranging from 0.3 meters to 50 meters;

  -High retention force combined with easy snap-in pluggable connectors;

  -Latching connector insures lock down mating retention;

  -Connectors are HFBR-4503 (gray) to HFBR-4503 (gray);

  -2.2mm polyethylene jacket on 1.0mm plastic optical fiber;

  -Black color cable.

Applications:

Automotive

Industrial control

Medical

Gaming equipment

1.3.Plastikinis jungiamasis PATCH kabelis 2xHFBR 4503/2xHFBR 4503. ZN Kodas 580467

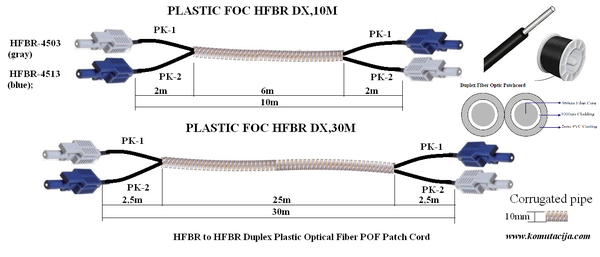

2xHFBR 4503 to 2xHFBR 4503 Duplex Plastic Optical Fiber POF Patch Cord

PLastikinis jungiamasis kabelis 2xHFBR 4503-2xHFBR 4503/HFBR DX dvigubas,pagaminats iš 1mm plastikinės optikos dvigubo  kabelio,kuris įvertas į skaidrų 10mm diametro gofruotą vanzdį,kuris kabelį apsaugo nuo mechaninio poveikio.Ant abiejų plastikinio kabelio galų yra uždėta HFBR-4503 pilkos jungtys.

Naudojimo sritis:Pramoninės staklės.

1.4.Plastikinis jungiamasis PATCH kabelis  HFBR/HFBR. ZN Kodas

HFBR to HFBR Simplex Plastic Optical Fiber POF Patch Cord

PLastikinis jungiamasis kabelis HFBR 4503/HFBR 4513-HFBR 4513/HFBR 4503 DX dvigubas,pagaminats iš 1mm plastikinės optikos dvigubo  kabelio,kuris įvertas į skaidrų 10mm diametro gofruotą vanzdį,kuris kabelį apsaugo nuo mechaninio poveikio.Ant plastikinio kabelio PK-1 vieno galo yra uždėta HFBR-4503 pilka jungtis,o ant kito galo uždėta HFBR-4513 pilka jungtis.

Analogiškos jungtys yra uždėtos ir ant plastikinio kabelio PK-2,tik atvirkščia tvarka.

1.5.Plastikinis jungiamasis PATCH kabelis  SMA/SMA 10m. ZN Kodas

SMA to SMA Simplex Plastic Optical Fiber POF Patch Cord

Industrial Fiber Optics manufactures multiple product lines of premium quality fiber optic patch cords suitable for Sercos networking and other industrial networking applications. This patch cord series utilizes plastic optical fiber and is recommended for short distance applications such as those inside cabinets or where they will not be subject to physical abuse or exposure to chemicals. Patch cord consists of a UL-rated fiber cable with industry-standard 1.0 mm optical core/cladding surrounded by a chlorinated polyethylene jacket terminated with all stainless steel SMA 905 connectors. Equivalent to Allen Bradley 2090-SCEP series. Available to all customers and OEM manufacturing companies as a direct purchase item.

Features:

  -UL-rated fiber cable

  -Strain reliefs to minimize fiber stress at terminations

  -1 µm polish terminations ensure high optical coupling efficiency

  -Epoxied and crimped connector terminations for maximum retention strength

  -Assembly processes exceed industry-standard procedures

  -SMA connectors provide excellent retention force combined with easy snap-in action;

  -Plastic fiber cable delivers high bandwidth and a tight bend bend radius when compared to traditional glass fiber;

  -These cables are available in lengths ranging from 0.3 meters to 50 meters;

  -High retention force combined with easy snap-in pluggable connectors;

  -Latching connector insures lock down mating retention;

  -Connectors are SMA (black) to SMA (black);

  -2.2mm polyethylene jacket on 1.0mm plastic optical fiber;

  -Black color cable.

Applications:

Automotive

Industrial control

Medical

Gaming equipment

F-SMA  jungties uždėjimas.

2.KEITIKLIAI PLASTIKINĖ OPTIKA POF-STIKLO PLUOŠTO OPTIKA

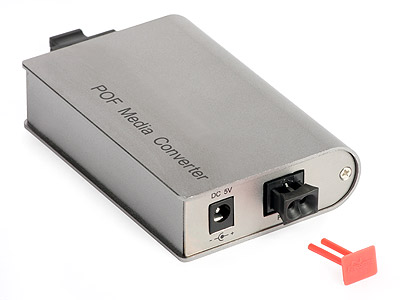

2.1.Keitiklis POF-vienamodė optika ULTIMODE POF-100SC.

The optical media converter ULTIMODE POF-100SC changes the signal from a glass fiber network (two single-mode fibers) to that of POF (Plastic Optical Fiber) optical network (100 Mb/s), and vice versa.

Distinguishing features:

2 x SC connector

transmission via two single-mode optical fibers (max 20 km)

1 x OptoLock port (100 Mbps),

transmission via POF cable (two polymer fibers) over distance up to 100 m,

status LEDs ,

easy installation (Plug and Play),

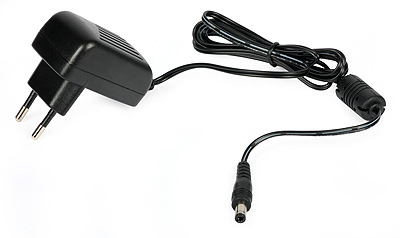

power supply incl.

The optical media converter ULTIMODE POF-100SC changes the signal from a glass fiber network (usually FTTH system) to that of POF (Plastic Optical Fiber) optical network (100 Mb/s) and vice versa. The media converter is equipped with two SC connectors (for transmitting and receiving data through a pair of single-mode fibers), and one Optolock connector. In the case of the glass network, the maximum transmission distance is 20 km (performed in the second transmission window - 1310 nm). The signals in POF network can be transmitted over distances up to 100 m. The media converter is fully compatible with IEEE 802.3u (100Base-FX) standard. The installation is very simple (Plug and Play). The LEDs located on the device provide information on the current operating status of the device.

The media converter uses OptoLock connector that allows for easy installation of plastic optical fibers without special tools. The procedure is safe due to operating parameters and the fact that the light (650 nm) is visible to the human eye. The maximum transmission distance is 100 m.

The decisive advantage of POF cables is their small size. The external diameter of one fiber is only 2.2 mm, which makes it easy to hide it behind skirting boards and pull through conduits. Plastic optical fibers can be installed by anyone - the installation is simpler and quicker than in the case of coaxial or twisted pair cables. All optical fibers are immune to electromagnetic interference and pulses.

ULTIMODE POF-100SC L6223 optical media converter is an ideal device for connecting FTTH (Fiber To The Home) network with FTTD (Fiber To The Desk) network, providing optimum solution for home/SOHO networking.

Specifications:
Name ULTIMODE POF-100SC
Code L6223
Standard IEEE 802.3u (100Base-FX)
POF optical port OptoLock (2.2 mm)
100 Base-FX, 650 nm
TX (POF) output power -8,5 ... -2 dBm
RX (POF) sensitivity -28 ...-24 dBm
Transmission range (POF) 100 m
Optical port 2 x SC, single-mode
IEEE 802.3u (100Base-FX)
TX output power - 14 ... - 3 dBm
RX sensitivity - 32 dBm
Transmission range  20 km
Tx/Rx wavelength 1310 nm
Power 1 A / 5 V (AC/DC adapter incl.)
Operating temperature 0oC ... 40oC
Dimensions  95 x 67 x 25 mm
